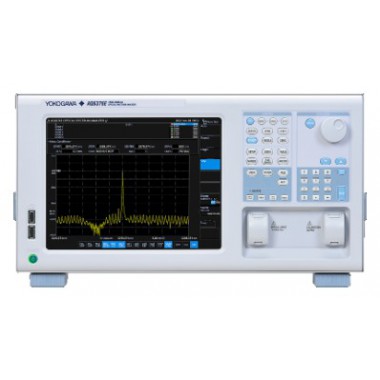

AQ6376E 3µm光谱分析仪 1500 - 3400 nm

中波红外波长，内置气体净化功能和高阶截止滤波器

AQ6376E 是我们台式光谱分析仪的最新版本，其波长覆盖范围远远超出了我们之前型号的近红外范围，延伸至中红外区域，测量范围覆盖1500 nm到 3400 nm。

常见的应用包括检测诸如一氧化碳（CO）、二氧化碳（CO₂）、氮氧化物（NOx）和碳氢化合物气体（CxHy）等气体，用于环境科学研究。

与长波长型号类似，它还具有额外的优势，比如输入端口/输出端口的气体净化功能、内置的用于消除高阶衍射光的截止滤波器，以及一种全新的两倍速模式，该模式的扫描速度比标准扫描模式快 2 倍。

Key feature summary

• Long wavelength range: 1500 to 3400 nm

• Gas purging ports to reduce water vapor effects

• Built-In cut filter for high order diffracted light

• Double Speed Mode to further enhance fast measurement speed

• High sensitivity down to -65 dBm

• High resolution to 0.1 nm

• Wide close-in dynamic range (55dB)

• Fast auto-calibration

• Free space optical input for maximum flexibility, low maintenance, and high reliability

• Applicable to single-mode and multimode fibers

• Excellent performance for environmental gas sensing Laser Spectroscopy

• Indispensable tool for R&D and manufacturing of optical devices in the wavelength range from telecom band to 3.4μm

New Features

Purge feature

Due to the high resolution and sensitivity of the AQ6376E, it can actually detect the presence of water molecules in the air. The water vapor is detected in the upper Near-IR wavelength region and could overlap with or mask the spectral characteristics of the actual device under test in that particular region.

By continuously supplying a pure purge gas such as nitrogen to the monochromator through the ports on the back panel, the AQ6376E can reduce the influence of water vapor absorptions and provide more reliable and accurate measurements than ever before.

Built-in cut filter for high order diffracted light

Due to the diffractive technology used, the monochromator in some circumstances could generate high order diffracted light, which appears at wavelengths equal to the integral multiple of input wavelengths.

By cutting incoming light below 1500 nm with the built-in filter, the AQ6376E drastically reduces the influence of high order diffracted light on the measurement. Thus, the measured data are always reliable and replicate the real signal under test.

Double speed mode

Increases the sweep speed up to 2 times compared to the standard sweep mode, with only a 2 dB penalty to the standard sensitivity value.

Long Wavelength Range: from 1500nm to 3400nm

The AQ6376E covers not only the wavelength span used in communications, but also the 3µm region which is used for environmental sensing, medical, biology and industrial applications.

High Sensitivity: down to -65dBm

The AQ6376E can measure optical power from +13dBm down to -65dBm thanks to its high-dynamic and very low noise components and circuits used for photo detection. This enables precise measurements of both high power and low power sources.

Measurement sensitivity can be chosen among 7 values according to the measurement speed required by the specific test to be performed.

High Resolution & Wide Dynamic Range

The AQ6376E uses a double-pass monochromator structure to achieve high wavelength resolution (0.1 nm) and wide close-in dynamic range (55 dB). Thus, closely allocated signals and noise can be separately measured.

High speed Measurement

GREATER EFFICIENCY

High Speed Sweep

With a proprietary sweep technique the AQ6376E achieves a much faster sweep speed than conventional measurement systems, which use a monochromator. Max. sweep time is only 0.5 sec. for 100 nm span.

Fast command processing and data transfer

Applying a fast microprocessor, the AQ6376E achieves very fast command processing speed and Ethernet interface provides up to 100 times faster data transfer speed than GP-IB.

Fast auto-calibration

Free-Space Optical Input

The AQ6376E uses a free-space optical input structure, i.e. no fiber is mounted inside the instrument.

This smart solution is:

• WORRY-FREE, as no internal fiber can be scratched or get dirty

• MAINTENANCE-FREE, as no internal fiber has to be cleaned

• VERSATILE, as the instrument accepts both /PC and /APC connectors

• DUAL PURPOSE, as the instrument accepts both Single-Mode and Multi-Mode fibers without being affected by the high insertion loss from MM-SM fibers matching

DUT-oriented test apps simplify the test process

The appplication mode (APP) transforms an OSA into a versatile machine dedicated to a device under test (DUT). APP mode provides a DUT-specific user interface that navigates the user from configuration settings to test result output without worrying with other OSA settings. The AQ6376E comes pre-installed with several standard applications including DFB-LD testing, FP-LD testing and SC light source testing. Additional optional applications are available for download from the Yokogawa Test&Measurement website.
