Key Benefits

True portability with integrated intelligence

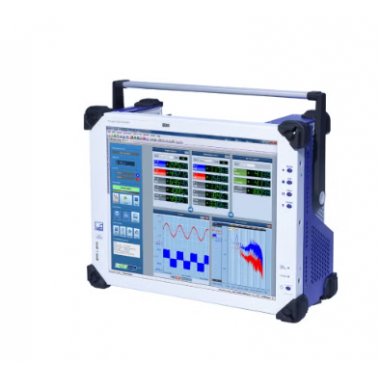

Gen3iA integrates a full‑featured Windows 10 PC directly into the mainframe, eliminating the need for an external computer. Its robust design and touchscreen interface make it ideal for mobile measurements and instrument‑style operation in the field or lab.

Secure capture of fast and critical events

Supporting both continuous and transient acquisition modes, Gen3iA ensures reliable recording of fast, non‑repeatable events. Data can be written directly to the internal SSD, streamed to an external PC, or buffered on high‑speed card memory to prevent data loss - even during power failures.

Seamless synchronization and expansion

With PTPv2 time synchronization and an optional Master/Sync connection, Gen3iA can be synchronized with other Genesis HighSpeed mainframes, enabling scalable multi‑system measurements with precise timing alignment.

Key features

• Integrated Windows 10 PC with large, high‑resolution touch screen

• Robust, portable design for mobile use

• Up to 96 analog, 32 digital, and 4 timer/counter channels

• 200 MB/s continuous streaming to internal SSD

• Remote access from an external PC

• Perception Advanced software for review and analysis

• Power‑failure data security and Wake‑on‑LAN

• PTPv2 time synchronization

Available options

• Master/Sync for multi‑mainframe setups

• IRIG/GPS time synchronization

• Optical 1 Gbit Ethernet

• 10 Gbit Ethernet with up to 400 MB/s continuous streaming

Measurement description

Gen3iA is optimized for high‑speed electrical and mechanical measurements in both stationary and mobile environments. Measurement data can be recorded continuously to the internal SSD, streamed to an external PC, or captured in transient mode using the acquisition cards’ high‑speed RAM to guarantee loss‑free recording of highly dynamic signals. Precise time alignment is ensured through Ethernet‑based synchronization.

Typical applications

• Portable and mobile data acquisition

• Transient recording of fast electrical and mechanical events

• Field testing and on‑site diagnostics

• Laboratory and benchtop measurements

• Distributed or synchronized multi‑mainframe test systems

Windows 10 Safety-Information:

The integrated mainframes run Perception on the integrated PC, which can not get upgraded to Windows 11. Since free support for Windows 10 will end in October 2025, Microsoft will offer a payed service for 3 additional years of safety-updates. You can reach out to Microsoft for the service.
