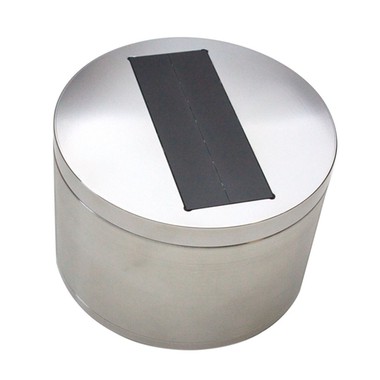

Solitrend MMP40 在线水分仪

固体散料含水率的连续和批次测量

产品规格参数

• 测量范围

  Recommended moisture range %/ vol.: 0...100 %

• 过程温度

  0…+70°C
  (+32°F...+158°F)

• Measuring method

  Contact inline measurement

• 测量原理

  Guided radar

• 应用

  Moisture measurement in heterogeneous bulk solids with the density from 1...3 g/ cm³ like fresh concrete, sewage sludge, slurries and other conductive materials

• Measuring method

  Contact inline measurement

• 测量范围

  Recommended moisture range %/ vol.: 0...100 %

• Material permeation depth

  Up to 35 mm
  (0.11 ft)

• 探头的一致性

  Conductivity range:
  0…max. 20 mS/ cm

• 温度传感器

  Yes

• 过程温度

  0…+70°C
  (+32°F...+158°F)

• Accuracy

  Up to +/-0.1 % abs.

• 输出

  0...20 mA
  4...20 mA

• 选项

  Remote display
  Sensor cables
  Baffle plate
  Universal holder
  Sliding carriage
