符合科研研发要求的高速、高分辨率和高热灵敏度

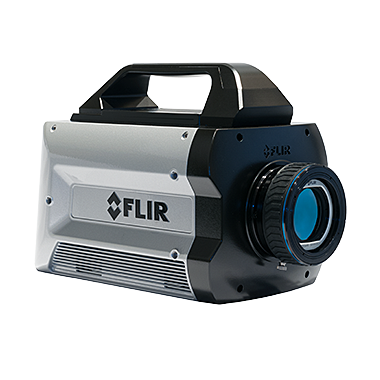

FLIR X8500sc是用于研发科研领域的高速、高分辨率、高热灵敏度的中波红外热像仪。借助内置RAM/SSD录制、1280 x 1024分辨率和快帧频等高级功能，无论是在实验室环境或是在测试范围内，研究人员可以对场景进行全面成像，并支持高速事件的画面定格功能。
X8500sc配备制冷型锑化铟(InSb)探测器，其具有的高热灵敏度可以探测小于20 mK的细微温差。可使用FLIR DVIR保存长达36秒的内置RAM视频数据，无需担心掉帧。录制后，可回放热像仪中的RAM视频或在90秒内将其保存到可移除的固态驱动器上，然后重新开始录制新视频。X8500sc也可以通过以太网、Camera Link和CoaXpress 同步高速传输14位数据，以实时查看、分析和录制。
FLIR X8500sc and X8500sc SLS Camera Features
Captures 1280 x 1024 data at 181 fps
On-camera full-frame recording to RAM for up to 36 sec.
Minimum integration times down to 270 ns
Synchronization with other instruments and events
Full GenICam support over GigE, CXP, and Camera Link interfaces
Thermal sensitivity of <20 mK (InSb) / <40 mK (SLS), for detecting subtle temperature changes
Works seamlessly with FLIR ResearchIR Max or third-party software, such as MATLAB
FLIR X8500sc & X8500sc SLS Camera Optics
Focal Length | FOV | F Number | Spectral Band | Minimum Working Distance |
17 mm | 48.6° x 39.7° | f/2.5 | 3.0 – 5.0 µm, 7.5 – 12.0 µm | 60 mm |
25 mm | 34.2° x 27.6° | f/2.5 | 3.0 – 5.0 µm, 7.5 – 12.0 µm | 200 mm |
50 mm | 17.5° x 14° | f/2.5 | 3.0 – 5.0 µm, 7.5 – 12.0 µm | 500 mm |
100 mm | 8.8° x 7° | f/2.5 | 3.0 – 5.0 µm, 7.5 – 12.0 µm | 3 m |
200 mm | 4.4° x 3.5° | f/2.5 | 3.0 – 5.0 µm, 7.5 – 12.0 µm | 5 m |
25 mm | 34.2° x 27.6° | f/2.5 | 3.0 – 5.0 µm, 7.5 – 12.0 µm | 200 mm |
50 mm | 17.5° x 14° | f/2.5 | 1.5 – 5.0 µm | 500 mm |
100 mm | 8.8° x 7° | f/2.5 | 1.5 – 5.0 µm | 3 m |
1x Close-up | 15.4 mm x 12.3 mm | f/4.0 | 3.0 – 5.0 µm | 50.8 mm |
4x Close-up | 3.8 mm x 3.1 mm | f/4.0 | 3.0 – 5.0 µm | 38.1 mm |
FLIR X8500sc & X8500sc SLS Camera Specifications
Model Number | X8500sc MWIR | FLIR X8500sc SLS LWIR |
System Overview | ||
Detector Type | FLIR Indium Antimonide (InSb) | Strained layer superlattice (SLS) |
Spectral Range | 3.0 – 5.0 µm or 1.5 – 5.0 µm | 7.5 – 10.5 µm |
Resolution | 1280 x 1024 | |
Detector Pitch | 12 µm | |
Electronics | ||
Readout Type | Snapshot | |
Synchronization Modes | Genlock, Sync-in, Sync-out | |
Image Time Stamp | Internal IRIG-B decoder clock TSPI accurate time stamp | |
Minimum Integration Time | 270 ns | |
Frame Rate (Full Window) | Programmable; 0.0015 Hz to 181 Hz | |
Subwindow Mode | Flexible windowing (steps of 32 columns, 4 rows) | |
Dynamic Range | 14-bit | |
Radiometric Data Streaming | Simultaneous Gigabit Ethernet (GigE Vision®), Camera Link, CoaXPress (CXP) | |
Standard Video | HDMI, SDI, NTSC, PAL | |
Command and Control | GigE, USB, RS-232, Camera Link, CXP (GenICam protocol supported over GigE or CXP) | |
Temperature Measurement | ||
Standard Temperature Range | -20°C to 350°C (-4°F to 662°F) | -20°C to 650°C (-4°F to 1200°F) |
Optional Temperature Range | Up to 3,000°C (5,432°F) | |
Accuracy | +/- 1C or +/-1% of reading* | |
General | ||
Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) | |
*Valid for 0 to +3000C on standard lens & filter configurations only
