品牌：: 泰斯科Testkey

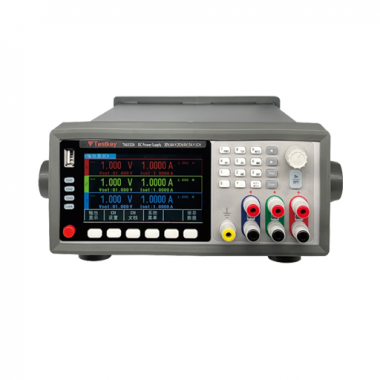

TK6300系列

标配 | RS232/RS485 | USB HOST | USB DEVICE

选配 | GPIB | LAN | HANDLER | 温度测试模块

注：支持SCPI和MODBUS协议

TK6322A

上架体积（mm）:215(W)×88(H)×400(D)

外形体积 (mm）: 235(W)×105(H)×430(D)

净重：8kg

TK6332A/TK6333A/ TK6324A

上架体积（mm）:215(W)×88(H)×463(D)

外形体积 (mm）: 235(W)×105(H)×491(D)

净重：13kg

特征

4.3寸24位真彩色液晶屏，480×272分辨率

线性设计、多通道输出、通道间支持串联、并联

高精度高稳定性、低涟波、低噪声

1/2 2U超小体积，前后面板输出与采样端

可定做集成8路温度测试模块(支持K、T、J、N、E、S、R、B多种热电偶)

清新简洁系统设置、中英文操作界面

强大的编程能力，1000组设置状态记忆保存和调用

20个触发文件、每个文件可以多达1000种测试系列，编程循环输出

定时输出:时间(0.1-99999.9s)

灵活方便的电压、电流、时间设置方式(旋钮或数字键盘)

远端补偿功能

测量结果数据可用U盘保存

截屏功能，数据记录和参数保存功能

可通过USB HOST升级仪器固件程序

Handler接口控制

智能温控风扇、降低使用噪声

过电压、过电流、过温度保护

详情

参数		TK6324A				TK6322A
额定输出	通道	CH1	CH2	CH3	CH4	CH1	CH2	CH3
	电压	0-30V	0-30V	0-10V	0-5V	0-30V	0-30V	0-6V
	电流	0-3A	0-3A	0-3A	0-1A	0-3A	0-3A	0-5A
	功率	90W	90W	30W	5W	90W	90W	30W
负载调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
电源调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
设定值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV	1mV
	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
回读值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV	1mV
	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
设定值精度 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
回读值分辨率 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
纹波与噪声 (20Hz-2MHz)	电压(VPP)	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤4mVp-p
	电压(VRMS)	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms
	电流	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤5mArms
串联同步误差		≤0.2%+10mA	≤0.2%+10mA	≤0.2%+10mA	≤0.2%+10mA	≤0.05%+10mA	≤0.05%+10mA	≤0.05%+10mA
并联设定值精度	电压	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+5mV	≤0.02%+5mV	≤0.02%+5mV
	电流	≤0.2%+20mA	≤0.2%+20mA	≤0.2%+20mA	≤0.2%+20mA	≤0.1%+20mA	≤0.1%+20mA	≤0.1%+20mA
记忆	回调储存	40组设定文件/通道
定时器	功能	定时关闭输出
	时间设置	0.1秒～99999.9秒
	解析度	0.1秒
工作温度		0℃～40℃

型号		TK6332A			TK6333A
额定输出	通道	CH1	CH2	CH3	CH1	CH2	CH3
	电压	0-30V	0-30V	0-6V	0-60V	0-60V	0-6V
	电流	0-6A	0-6A	0-5A	0-3A	0-3A	0-5A
	功率	180W	180W	30W	180W	180W	30W
负载调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
负载调整率±(%输出+偏置)	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
电源调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
电源调整率±(%输出+偏置)	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
设定值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV
设定值分辨率	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
回读值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV
回读值分辨率	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
设定值精度 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
设定值精度 (25℃±5℃)	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
回读值分辨率 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
回读值分辨率 (25℃±5℃)	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
纹波与噪声 (20Hz-2MHz)	电压(VPP)	≤4mVp-p	≤4mVp-p	≤4mVp-p	≤4mVp-p	≤4mVp-p	≤4mVp-p
	电压(VRMS)	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms
	电流	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤5mArms
串联同步误差		≤0.2%+10mA	≤0.2%+10mA	≤0.2%+10mA	≤0.05%+10mA	≤0.05%+10mA	≤0.05%+10mA
并联设定值精度	电压	≤0.02%+5mV	≤0.02%+5mV	≤0.02%+5mV	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+10mV
并联设定值精度	电流	≤0.2%+30mA	≤0.2%+30mA	≤0.2%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
记忆	回调储存	40组设定文件/通道
定时器	功能	定时关闭输出
	时间设置	0.1秒～99999.9秒
	解析度	0.1秒
工作温度		0℃～40℃
标配附件		TSK107 三芯电源线
