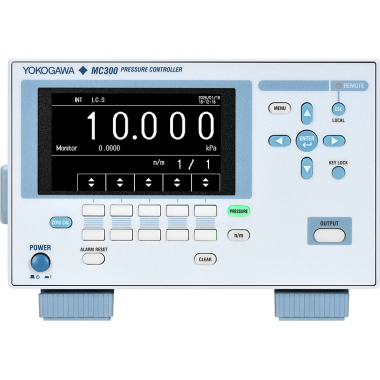

压力控制器 MC300

MC300 是一款压力控制器，具有高精度、快速响应和长期稳定性等特点。
通过采用横河电机独有的硅谐振传感器以及使用针阀的控制系统，其输出相对精度可达 0.04%。
除了出色的线性度和重复性外，它还能实现平稳的压力控制，将超调量降至最低，直至达到目标设定值。

Two Optimized Models for Different Pressure Ranges

Gauge pressure 10 kPa range model
Gauge pressure 200 kPa range model

Unmatched Accuracy and
Long-Term Stability

Output relative accuracy: ±0.04%
Accuracy guarantee period: 12 months

Fast Response, Superior Quality

≤5 s response time with low overshoot

Versatile Functionality

Pressure monitoring
Micro negative pressure output
Sweep, auto step, divider output

Excellent Linearity and Repeatability

Powered by Yokogawa’s proprietary sensing technology — combining a silicon resonant sensor with precision needle-valve flow control — the MC300 delivers an output relative accuracy of ±0.04% with one-year guaranteed long-term stability.
Extremely low hysteresis, excellent linearity, and high repeatability ensure stable, reliable pressure control over extended operating periods.

High-Speed, Smooth Pressurization

The MC300 mitigates the risk of overpressure at the device under test caused by rapid pressurization through smooth flow regulation using precision needle-valve control. Even as the setpoint is approached, it maintains fine pressure control to minimize overshoot and achieves a response time of less than 5 seconds.

Precise Needle Valve Control

The MC300 uses a needle valve servo mechanism in its pressure control section, adjusting airflow through the needle position to regulate output pressure. Unlike solenoid valve systems that rely on rapid open/close operations, the needle valve enables continuous, smooth movement. This design delivers stable pressurization and depressurization with minimal wear, ensuring long-term reliable operation

Functions that support various pressure control

We offer functions to meet various needs in pressure testing and evaluation, such as process management in various industries and automation in production sites.

Learn more about features

Applications

MC300 meet the needs of a wide range of industrial fields, including the development, inspection, and testing of blood pressure monitors, water level gauges, and other equipment, as well as container leak testing and automatic calibration of transmitters.

Learn more about the application
