Key Benefits

Compact and portable for flexible deployment

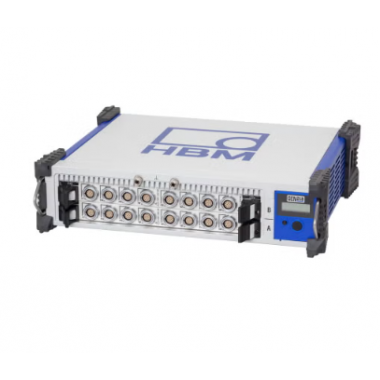

With two acquisition slots, the Gen2tB offers a space‑efficient solution that is equally suited for portable use or rack‑mounted installations. It delivers the essential performance of a transient recorder in a smaller, more accessible system footprint.

Secure recording of dynamic events

Gen2tB supports both continuous and transient acquisition modes, allowing measurement data to be streamed to a PC, stored on an internal SSD, or buffered on high‑speed input card memory. This ensures reliable capture of fast, non‑repeatable events without throughput limitations.

Easy integration into synchronized test setups

Thanks to PTPv2 time synchronization and an optional Master/Sync connection, Gen2tB can be synchronized with other Genesis HighSpeed mainframes or integrated into larger Ethernet‑based measurement systems.

Key features

• 2 acquisition slots for Genesis HighSpeed input cards

• Portable or rack‑mountable design

• 1 Gbit Ethernet with up to 100 MB/s data streaming

• PTPv2.0 time synchronization

• Up to 32 digital events and 4 timer/counter channels

• Status display for system information

• Perception Standard software included with single‑mainframe control

Available options

• Optical 1 Gbit Ethernet (via SFP)

• Master/Sync port for multi‑mainframe operation

• Internal SSD (1000 GB, 125 MB/s)

• CAN FD/CAN 2.0 input, output, and acquisition control

Measurement description

Gen2tB is optimized for high‑speed electrical and mechanical measurements where channel count is moderate but timing accuracy and data integrity are critical. Measurement data can be streamed in real time over Ethernet, stored locally on an internal SSD, or captured in transient mode using the input cards’ high‑speed RAM to guarantee loss‑free recording of fast signal events.

Typical applications

• Portable transient recording and troubleshooting

• Electrical and mechanical component testing

• Laboratory and benchtop measurements

• Entry‑level or distributed Genesis HighSpeed test systems

• Synchronized measurements as part of a multi‑mainframe setup
