Preventing 3 Errors in­­­­ Signal Conditioning to Reach Accurate Test Results

• Which factors can negatively affect the accuracy of industrial signal conditioners?

• What impact does accuracy have on my measurement results?

• How can I set up a precise measurement chain?

HBM develops and produces perfectly matched sensors and measurement modules, that, when combined, provide precise and dependable measurement results without system discontinuities. The certification in compliance with ISO9001, ISO14001, and the accredited HBM calibration laboratory (DAkkS) ensures that the quality of the measurement chains is traceable in compliance with ISO 17025.

Download the calibration certificate for your ClipX module here. It goes without saying that all the measurement chains can easily be integrated into overall control systems, owing to cutting-edge digital and analog automation interfaces.

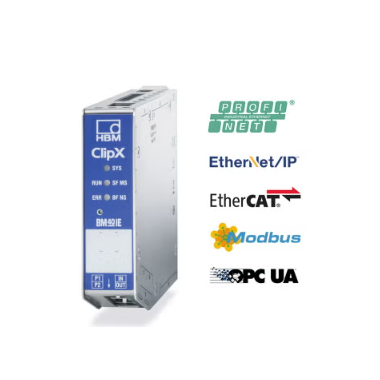

ClipX comes with an innovative and intuitive web interface and is immediately operational without any software installation or training.

• It can be used on all browser-based devices (and also mobile devices)

• Touchscreen control with three-level user administration

• Remote maintenance via a company network or the Internet

• The web interface can be used on mobile devices using a WiFi router

• Create your own customized display pages

• Multilingual user interface with integrated help and adjustment assistant

ClipX allows for the synchronization of both individual measurement chains and systems in milliseconds – optionally with a simultaneous PC or fieldbus connection.

• Measured values including their status (diagnosis) are transmitted via the ClipX bus

• No head module is required, which reduces costs

• Direct processing of all signals such as summation, peak values, or controls

• The multi-client capability enables all interfaces to be used in parallel and in real time

• Digital inputs and outputs can perform fast control and monitoring tasks (e.g. alarms)

Watch this step-by-step tutorial video and see how easy it is to set up ClipX!

• No tools needed to set up the device

• Plug and play principle

• Immediate access to the intuitive web interface

Measurement Technology 4.0 - Optimize Your Production Processes

• How can modern signal conditioners optimize my production processes to reach higher output?

Download now

ClipX already meets the requirements of the future IIoT.

• Easy amplifier parameterization via TEDS or the smart Adjustment Assistant

• Smart devices owing to Smart Functions (diagnosis and analysis)

• Non-interacting, parallel operation of the PLC, the system PC, and the service interfaces

• High forward-compatibility and investment security due to flexible automation interfaces and data logging to the Cloud (OPC-UA protocol on request)
