水质硬度分析仪

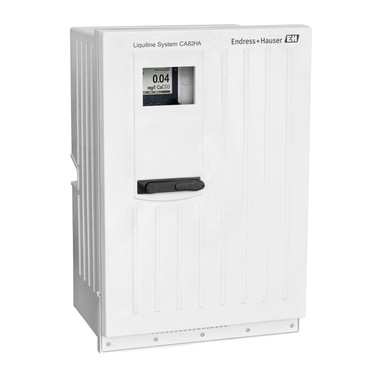

Liquline System CA82HA

比色法测量系统，在线监测工艺用水，低检测限监测

产品规格参数

• 测量范围

  0 to 2.5 mg/l (ppm) CaCO3
  LOD: 0.02 mg/L CaCO3

• 过程温度

  10 to 40 °C (50 to 104 °F)

• 过程压力

  2 to 6 bar (29 to 87 psi)

• Measuring method

  Comply with standard colorimetric measuring principle

• 测量原理

  比色

• 特点

  Analyzer for water hardness in aqueous solutions

• Measuring method

  Comply with standard colorimetric measuring principle

• 尺寸

  Housing (open version):
  793 x 530 x 417 mm
  31.22 x 20.87 x 16.42 in
  Housing (closed version):
  793 x 530 x 463 mm
  31.22 x 20.87 x 18.23 in
  Housing with base:
  1723 x 530 x 463 mm
  67.83 x 20.87 x 18.23 in

• 设计

  Open design / cabinet
  Plastic ASA-PC

• 过程温度

  10 to 40 °C (50 to 104 °F)

• 环境温度

  5 to 40 °C (41 to 104 °F)

• 过程压力

  2 to 6 bar (29 to 87 psi)

• 探头处的流速

  60 to 250 ml/min (2.03 to 8.45 fl.oz/min)

• 探头的一致性

  Particle free

• 特殊要求

  Easy upgrade to measuring station with up to four digital Memosens sensors
  Automatic calibration and cleaning
  User-configurable measuring, cleaning and calibration intervals
  optional up to 6 sample channels
  Flexible functionality and modular expandable
  Digital communication for remote access

• 应用

  Determination of water hardness concentration in ultrapure water
  boiler feed water
  Monitoring of water-steam-circuit and condensate
  Monitoring and optimization of reverse osmosis and desalination

• 电源

  100 to 120 VAC / 200 to 240 VAC
  50 or 60 Hz

• 输出

  2x 0/4 to 20 mA
  Optional: Webserver, Modbus, Ethernet/IP, Profibus DP

• 输入

  1, 2, 4 or 6 measuring channels
  Optional 1 to 4 digital inputs for sensors with Memosens protocol

• 测量范围

  0 to 2.5 mg/l (ppm) CaCO3
  LOD: 0.02 mg/L CaCO3

• 耗材

  Reagents and standard solutions CY82HA
  Maintenance kit CAV800
