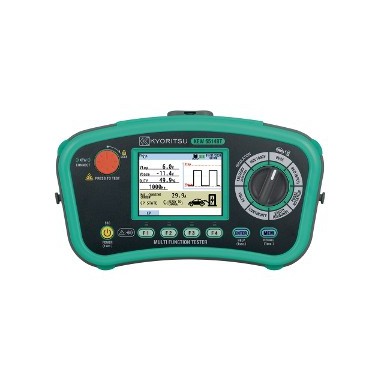

KEW 6514BT

*提供各种电气安装测试
绝缘测试 / 接地测试 / 导通测试 / 电机旋转测试 / 双线回路测试 / RCD测试 / 相位旋转测试 / 频率测试 / 交流电压测试 / SPD(变阻器)测试
*自动保存
*彩色 LCD 显示屏
*EVSE专用功能
CP信号波形检查 / 锁扣锁定 / 可编程自动测试

		KEW 6514BT	KEW 6516	KEW 6516BT
VOLT		600V
Continuity		✓
Earth		2-wire / 3-wire
RCD	Function	×1/2, ×1, Ramp	×1/2, ×1, ×5, Ramp, Auto, Uc
	RCD type	AC(G)	AC/A/F/B(G/S)
	Test current	15/30/50/100/200/500mA	10/30/100/300/500/1000mA/Variable
PSC/PFC		-	✓
EVSE Test	RCD (Compatible with RCD for EVSE)	-	✓(DC 6mA)
	LOOP (Compatible with RCD for EVSE)	-	✓(N-PE:4mA)
	Checking CP signal	✓	-
	Latch switch circuit resistance	✓	-
	Programmable Autotest	✓	-
Insulation resintance	Test Voltage	25/50/100/125/250/ 500/1000V	100/250/500/1000V
Loop Impedance	LOOP ATT 2-wire	✓(L-PE:7mA)	✓(L-PE:15mA)
	LOOP ATT 3-wire	-	✓
	LOOP HIGH	-	✓
Phase rotation		✓
	Motor rotation check	✓	-
Auto memory		✓	-
Communication interface	USB	✓
Communication interface	Bluetooth®	✓	-	✓

Specification

Insulation resistance								SPD (Varistor)
Test voltage	25V	50V	100V	125V	250V	500V	1000V	1000V max.
Range	2.000/20.00MΩ (Auto-ranging)		2.000/20.00/200.0MΩ (Auto-ranging)			2.000/20.00/ 200.0/1000MΩ (Auto-ranging)	2.000/20.00/ 200.0/2000MΩ (Auto-ranging)	0 to 1000V (goes up by 1V)
Accuracy	－							±5%rdg±5dgt
First effective measurement range	0.100 to 10.00MΩ		0.100 to 25.0MΩ		0.100 to 50.0MΩ	0.100 to 100.0MΩ	0.100 to 1000MΩ	－
First effective measurement range	±2%rdg±2dgt							－
Second effective measurement range	0.050 to 0.099MΩ							－
	±2%rdg±4dgt
	10.01 to 18.00MΩ		25.1 to 180.0MΩ		50.1 to 180.0MΩ	100.1 to 900MΩ	1001 to 1800MΩ
	±5%rdg
Rated current	1.0 to 1.2ｍA							－
Rated current	0.025 MΩ	0.05 MΩ	0.1 MΩ	0.125 MΩ	0.25MΩ	0.5MΩ	1MΩ	－
Short circuit current	1.5mA max

Range		20.00/200.0/2000Ω (Auto-ranging)
Accuracy		±2%rdg±0.08Ω (20.00Ω) ±2%rdg±3dgt (200.0/2000Ω)

	Vbase	±4dgt
Measuring range	Vtop	2.0 to 15.0V
	Vbase	-15.0 to -2.0V
	Frequency	980 to 1020Hz
	Duty	10.0 to 96.0%
	Charging current	6.0 to 80.0A
Accuracy	Vtop	±4dgt
	Frequency	±0.5%rdg±4dgt
	Duty	±10dgt
	Charging current	Depends on the accuracy of the Duty cycle.

Measuring range	Phase rotation	3 to 600V (45 to 65Hz)
Measuring range	Motor rotation	0.1 to 2V (1 to 10Hz)
Indication		Clockwise direction: “1.2.3”and clockwise phase sequence icon Counterclockwise direction: “3.2.1”and counterclockwise phase sequence icon

Applicable srandards	IEC 61010-1, IEC 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10, IEC 60529 (IP40)
Communication interface	USB, Bluetooth® 5.0
Power source	LR6 (AA)(1.5V) × 8
Dimansion	136(L) × 235(W) × 114(D) mm
Weight	Approx. 1300g (including batteries)
Accessories	7281 (Test leads with remote control switch) 7247 (Distribution board test lead) 7228A (Earth resistance test leads) 8017B (Extension prod long) 8041 (Auxiliary earth spikes [2spikes/1set]) 8923 (Fuse [0.5A/600V]×1 (included), 1 (spare) 9084 (Soft case) 9142 (carrying case) 9151 (Shoulder strap) 9199 (shoulder pad) Batteries, Instruction manual
Optional accessories	7272 (Precision measurement cord set) 8212-USB (USB adapter) 8259 (Adapter fpr measurement terminal) 8601 (EVSE ADAPTER) 8602 (EVSE ADAPTER)
