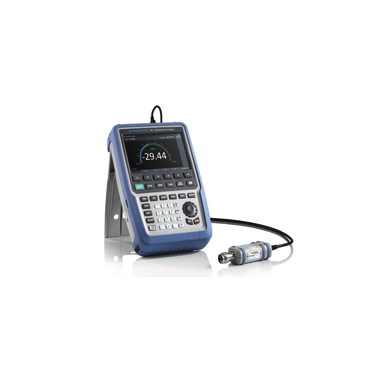

with R&S®FPH-B3 option

5 kHz to 3 GHz

with R&S®FPH-B3 and R&S®FPH-B4 options

5 kHz to 4 GHz

installed

Frequency resolution

1 Hz

Resolution bandwidth

1 Hz to 3 MHz in 1/3 sequence

Spectral purity SSB phase noise

f = 500 MHz

30 kHz

< –88 dBc (1 Hz), typ. –95 dBc (1 Hz)

100 kHz

< –98 dBc (1 Hz), typ.–105 dBc (1 Hz)

1 MHz

< –118 dBc (1 Hz), typ. –125 dBc (1 Hz)

Displayed average noise level

0 dB RF attenuation, 50 Ω termination, RBW = 100 Hz, VBW = 10 Hz, sample detector,

log scaling, tracking generator off, normalized to 1 Hz

frequency

preamplifier = off

1 MHz to 10 MHz

< –135 dBm, typ. –142 dBm

10 MHz to 1 GHz

< –142 dBm, typ. –146 dBm

1 GHz to 4 GHz

< –140 dBm, typ. –144 dBm

frequency

preamplifier = on

1 MHz to 10 MHz

< –150 dBm, typ. –160 dBm

10 MHz to 3 GHz

< –158 dBm, typ. –163 dBm

3 GHz to 4 GHz

< –156 dBm, typ. –161 dBm

Third-order intercept (IP3)

intermodulation-free dynamic range, signal level 2 × –20 dBm, RF attenuation = 0 dB,

RF preamplifier = off

f = 1 GHz

+7 dBm (meas.)

f = 2.4 GHz

+10 dBm (meas.)

Total measurement uncertainty

95% confidence level, +20°C to +30°C, SNR > 16 dB, 0 dB to –50 dB below reference level,

RF attenuation auto

10 MHz ≤ f ≤ 4 GHz

< 1.25 dB, typ. 0.5 dB

Display

Resolution

WVGA, 800 × 480 pixel

Battery

llithium ion battery

Capacity

R&S®HA-Z306

72 Wh

Voltage

11.25 V

Operating time with new, fully charged battery

R&S®HA-Z306

8 h

Dimensions

W × H × D

202 mm × 294 mm × 76 mm

(8.0 in × 11.6 in × 3 in)

Weight

2.5 kg (5.5 lb)
